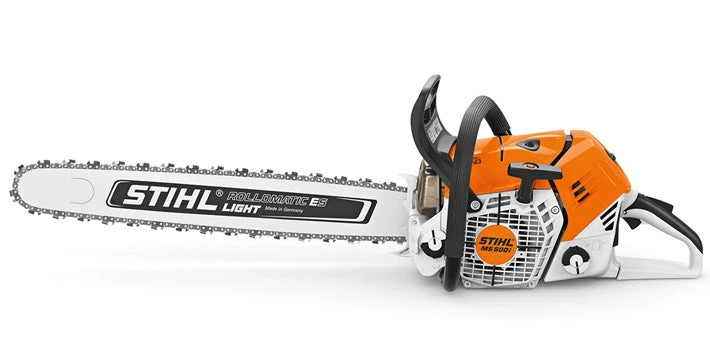

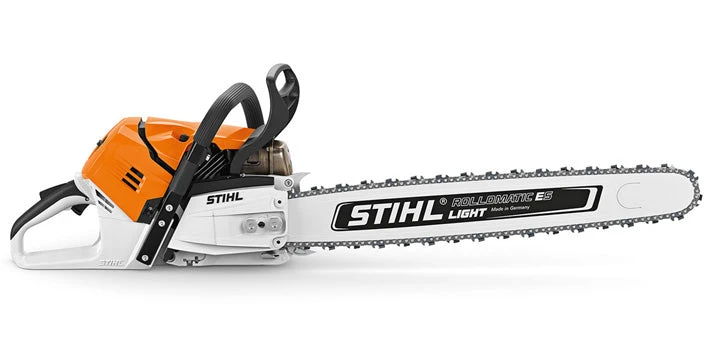

STIHL Chainsaws MS 500i W Petrol Professional

Features:

• STIHL injection technology enables the MS 500i to achieve extremely high performance with extraordinarily low displacement and low weight. The saw uses innovative technology to achieve rapid acceleration from 0 to 100 km/h in an unbelievable 0.25 seconds. The powerful saw is ready to use right away. Sensors measure air pressure and internal and external temperature and pass the information on to the control unit. This can use the identified values to determine the optimum fuel quantity and ignition timing.
• Its revolutionary chainsaw engine technology and resulting intelligent lightweight construction result in the best power-to-weight ratio on the market. The optimised design – with lightweight sprocket cover, more compact engine unit, flywheel with a low design height, and a reduced-weight crankshaft adapted to the low weight of the flywheel – makes work significantly more comfortable. The MS 500i is ideal for heavy timber felling, cutting into lengths, and pruning.

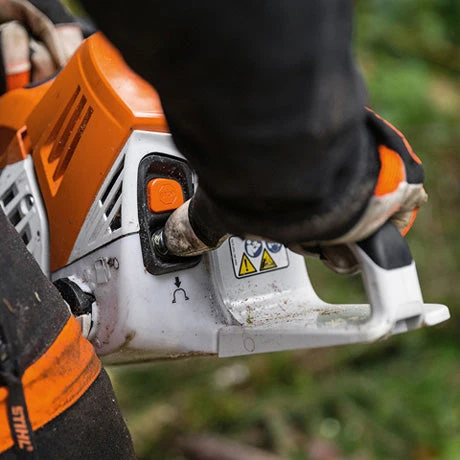

• The decompression valve is part of the easy-starting system. The valve should be pressed before starting to reduce the compression pressure when starting, as well as reduce the effort needed to pull the starter rope. The decompression valve is semi-automatic; it must be pressed manually before starting but then closes automatically.
• In addition to the external temperature sensor, the MS 500i also has a pressure and internal temperature sensor in its engine. This measures the environmental pressure on start-up, and during operation, it checks the engine temperature and pressure in the crankcase. The electrical voltage generator delivers the required speed information. The control unit processes these values, meaning that the system adapts to the conditions of use. The fuel is then dosed at the optimum level, quickly resulting in perfect running characteristics.
• These provide additional comfort in cold weather and can be engaged with a switch on the left handle as required. Very easy to start, whether starting from cold or Zoom
• Very easy to start, whether starting from cold or
• The starting process is perfect, with no need for a start position, and easy access to the purge.
• Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine’s engine are dampened which significantly reduces vibrations at the handles.
• The new HD2 air filter, made from PET material and featuring a radial seal, prevents the intake of fine dust particles. The hermetic seal increases the service life of the engine and reduces wear.
• When changing the cutting attachment, you will not risk losing the nuts on the sprocket. The MS 261 is the first STIHL chainsaw to be equipped with captive nuts. A great advantage for all users.
• Allows a precise, demand-based delivery of oil. It’s possible to reduce oil production by up to 50% in the E position. For very long cutting attachments or very dry wood, an additional volume of oil can be added by the user. similar to illustration.
• Marking has been added to the fan housing to assist with plunge cuts. This ensures better directional control and safe use of the machine during plunge cutting.
• The tooth length of the bumper spikes has been adjusted to account for the radial contours of trees. The saw bites into wood even better when cutting lengths and felling.
• The tensioning screw can be found on the side of the chain saw through the sprocket cover. This removes the need for contact with the sharp saw chain.
• STIHL ElastoStart reduces the shock caused by the compression of the engine during starting. The compression shock is taken away from the user’s joints and muscles through a spring or rubber element in the starter handle.
• Special catches on the fuel and oil tanks for easy opening and locking without the need for tools.

Technical Specification:

• Displacement cm³ – 79.2
• Power output kW/bhp – 5/6.8
• Weight kg 1) – 6.3
• System weight kg 2) – 7.88
• Power-to-weight ratio kg/kW – 1.3
• Sound pressure level dB(A) 3) – 106
• Sound power level dB(A) 3) – 119
• Vibration values left/right m/s² 4) – 4.2/4
• Oil pump – Adjustable enlarged hub
• Tank volume l – 0.78
• Chain pitch – 3/8″
• Chain tensioning – Lateral chain tension
• Sprocket – number of teeth – 7 Z
• Filter – Cartridge filter HD2
• Bumper spike – Steel claw
• Cylinder – 4 channel / chrome
• Oil tank volume cm3 – 325
• Sprocket – Ring sprocket
• Anti-vibration system – Standard AV-System
• Filler cap – Tool-free filler cap
• EPA Certified fuel consumption l/h – 2.707
• CO2 g/kWh – 707

1) Without fuel, without bar and chain
2) Unfueled, with guide bar and saw chain
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4) K-factor according to DIR 2006/42/EC = 2m / s ²
